APC EASY UPS ON-LINE SRV 6000VA RT (SRV6KL-IN)
- High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
- Includes: Basic UPS signalling RS-232 cable, CD with software, Rack mounting brackets, Stabilization/wall mounting feet, USB cable, User manual.
- 6.0 kWatts / 6.0 kVA.
- Warranty - 2 yrs
features
- Topology - Double conversion online.
- Cold-start capable .
- Generator compatibility.
- LCD graphics display.
- Serial connectivity.
- Rack/Tower convertible.
- EPO - Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation.
- High efficiency.
- Bypass - Internal bypass (automatic and manual).
- ECO Mode.
- Input Power Factor Correction.
- Surge Rating - 600 Joules.
- Rack Height - 5U.
frequently asked questions
Probable cause:
1. The Easy-UPS is not turned on.
2. The Easy-UPS is not connected to utility power supply.
3. Input circuit breaker on the Easy UPS is tripped.
Possible Solution:
1. Press the POWER ON/OFF button to turn on the Easy-UPS.
2. Check that the power cable from the Easy-UPS to the utility power supply is securely connected at both ends.
3. Turn on the circuit breaker in the rear panel.
In case if issue persist even after trying the above troubleshooting, log the complaint.
1. The Easy-UPS is not turned on.
2. The Easy-UPS is not connected to utility power supply.
3. Input circuit breaker on the Easy UPS is tripped.
Possible Solution:
1. Press the POWER ON/OFF button to turn on the Easy-UPS.
2. Check that the power cable from the Easy-UPS to the utility power supply is securely connected at both ends.
3. Turn on the circuit breaker in the rear panel.
In case if issue persist even after trying the above troubleshooting, log the complaint.
Kindly follow the below steps to turn ON the output of Easy UPS:
1. Press the Power ON/OFF button to turn the Easy-UPS.
2. Once again press the power button to get the output voltage.
1. Press the Power ON/OFF button to turn the Easy-UPS.
2. Once again press the power button to get the output voltage.
Kindly follow the below steps to turn off the Easy UPS:
1. Easy-UPS logic power cannot be turned off if utility input power is available.
2. To turn off the Easy-UPS, turn off utility input power, Press and hold the POWER ON/OFF button until the beep isheard to power off the Easy-UPS .
1. Easy-UPS logic power cannot be turned off if utility input power is available.
2. To turn off the Easy-UPS, turn off utility input power, Press and hold the POWER ON/OFF button until the beep isheard to power off the Easy-UPS .
Probable cause:
High or low input voltage or input frequency out of range.
Possible Solution:
1. Check the input voltage, frequency, earth voltage and neutral line.
2. Check the input voltage and frequency through display.
3. Check the input hard wiring for any short.
4. Try to turn on the UPS by giving utility power supply after checking the connections.
In case if issue persist even after trying the above troubleshooting, log the complaint
High or low input voltage or input frequency out of range.
Possible Solution:
1. Check the input voltage, frequency, earth voltage and neutral line.
2. Check the input voltage and frequency through display.
3. Check the input hard wiring for any short.
4. Try to turn on the UPS by giving utility power supply after checking the connections.
In case if issue persist even after trying the above troubleshooting, log the complaint
Probable cause:
1. Weak batteries.
2. The Easy-UPS battery is discharged due to a recent power outage.
3. The battery is near the end of its service life.
Possible Solution:
1. Check the load percentage via display.
2. Frequent power failures would lead to low battery, ensure the batteries are allowed to charge completely after every discharge.
3. If the battery is near the end of its service life, consider replacing the battery, even if the replace battery indicator is not illuminated.
In case if issue persist even after trying the above troubleshooting, log the complaint.
1. Weak batteries.
2. The Easy-UPS battery is discharged due to a recent power outage.
3. The battery is near the end of its service life.
Possible Solution:
1. Check the load percentage via display.
2. Frequent power failures would lead to low battery, ensure the batteries are allowed to charge completely after every discharge.
3. If the battery is near the end of its service life, consider replacing the battery, even if the replace battery indicator is not illuminated.
In case if issue persist even after trying the above troubleshooting, log the complaint.
UPS having 2 Yrs warranty including battery.
Yes with the help of rackmount brackets you can Rack mount the UPS and with the help of rail
kit sliding of UPS is also possible.
Yes, You can monitor UPS online by using SNMP, It is Optional, You have to buy with extra charges.

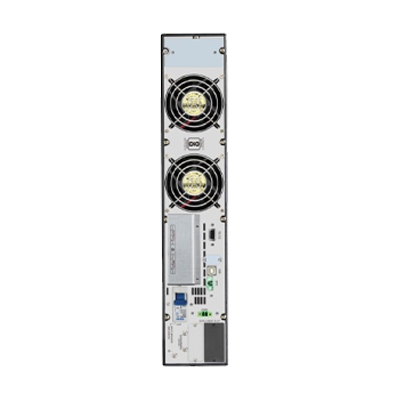

There is terminal block at back side of UPS for connection of Input and output cable.
