APC Smart-UPS RC 1000VA (SRC1KUXI) with external battery
- High density, double-conversion on-line power protection with scalable runtime.
- 800 Watts / 1.0kVA.
- Warranty - 2 Yrs.
features
- Topology - Double conversion online.
- Cold-start capable .
- Generator compatibility.
- LCD status display.
- Serial connectivity.
- Automatic internal bypass.
- Output Waveform Type - Pure sine wave.
frequently asked questions
Kindly find the Solution below :
Select the battery charger current in the SRC1KUXI model. Use the rotary switch provided in the rear panel to set the battery charger current.
Note: Default factory settings for charging current selection switch is 4 A. Wrong selection of charging current will reduce the battery life.
Select the battery charger current in the SRC1KUXI model. Use the rotary switch provided in the rear panel to set the battery charger current.
Note: Default factory settings for charging current selection switch is 4 A. Wrong selection of charging current will reduce the battery life.
Yes,to set the output volatge follow below steps.
• Select the 'Configuration' option from Main Menu and enter on it.
• Select 'UPS settings' and click enter on it.
• Select 'UPS output voltage' option.
• Press down 'arrow button' to select the desired output voltage(220/230/240) and enter on it.
• Select the 'Configuration' option from Main Menu and enter on it.
• Select 'UPS settings' and click enter on it.
• Select 'UPS output voltage' option.
• Press down 'arrow button' to select the desired output voltage(220/230/240) and enter on it.
1)Check what type of battery (SMF or Tubular) and Ah of battery before connecting to UPS.

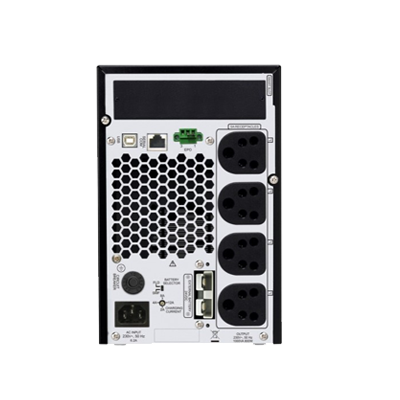

2)UPS has a selection switch present at the back panel of UPS to set the charging current.
3)Charging current can be set as per the Ah rating of the connected external battery.
Note: Note :Wrong selection of charging current may reduce battery life.
2)UPS has a selection switch present at the back panel of UPS to set the charging current.
3)Charging current can be set as per the Ah rating of the connected external battery.
Note: Note :Wrong selection of charging current may reduce battery life.
1)Check the type of battery before connecting to UPS.
2)UPS has a selection switch present at the back panel of UPS to set battery type.
3)We can select either SMF or Flooded (Tubular).
2)UPS has a selection switch present at the back panel of UPS to set battery type.
3)We can select either SMF or Flooded (Tubular).
Low Battery State - The battery is nearing its complete discharge state. The UPS is about to shutdown.
The UPS will emit an audible alarm when the actual run time reaches the limit set by the
end user. The audible alarm will emit only when the UPS is working in battery mode. To set
low battery Alarm indication to follow below steps
1)Go to the Main menu select 'configuration' press enter.
2)Select 'Low battery state indication ' press enter.
3)Select option 2 min, 5 min,8 min, 11 min,14 min, 17 min,20 min, 23 min according to your requirement.
1)Go to the Main menu select 'configuration' press enter.
2)Select 'Low battery state indication ' press enter.
3)Select option 2 min, 5 min,8 min, 11 min,14 min, 17 min,20 min, 23 min according to your requirement.
We can disable Audible alarm in two ways
1) By long pressing the Mute button
2) Go to menu under that select 'configure' press enter and select 'UPS' settings press enter and select 'Audible Alarm' where you can select 'Disable" or 'Enable' according to your need.
1) By long pressing the Mute button
2) Go to menu under that select 'configure' press enter and select 'UPS' settings press enter and select 'Audible Alarm' where you can select 'Disable" or 'Enable' according to your need.
You can connect externally 12V 2 Nos of max. capacity 80AH - 120 AH SMF batteries as per Manual.
2 Years Repair or replace on site.
After confirm PO, we can deliver the UPS within 2-3 working days (But it's depend on stock
availability with APC ).
