APC SMART-UPS RC 1000VA (SRC1KI-IN) with Inbuilt battery
- High density, double-conversion on-line power protection with scalable runtime.
- 800 Watts / 1.0kVA.
- For PC & Mixed load.
- Warranty - 2 Yrs including battery.
Rs. 25100/ including GST.
Note : prices are inclusive of GST. Transportation charges will be at actuals.
features
- Topology - Double conversion online.

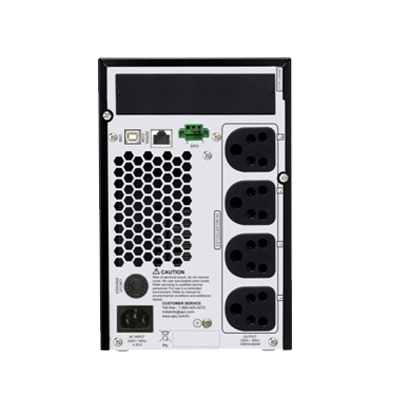

- Output Connection - ((4) India 3-pin 6A.
- Cold-start capable.
- Generator compatibility.
- LCD Status display.
- USB connectivity.
- Serial connectivity.
- Automatic Buitin bypass.
- Wave form - Sine wave.
frequently asked questions
Kindly follow the below steps:
1.Press enter key for menu.
2.Use navigation key to select green mode from "SET" option.
3.Press enter key leaf symbol will start flashing.
4.Select "n" using navigation key and press enter for the changes.
5.Now green mode has been disabled.
1.Press enter key for menu.
2.Use navigation key to select green mode from "SET" option.
3.Press enter key leaf symbol will start flashing.
4.Select "n" using navigation key and press enter for the changes.
5.Now green mode has been disabled.
Kindly follow the below steps:
1.Press enter key for menu.
2.Use navigation key to select green mode from "SET" option.
3.Press enter key leaf symbol will start flashing.
4.Select "y" using navigagtion key and press enter for the changes.
5.Now green mode has been enabled.
1.Press enter key for menu.
2.Use navigation key to select green mode from "SET" option.
3.Press enter key leaf symbol will start flashing.
4.Select "y" using navigagtion key and press enter for the changes.
5.Now green mode has been enabled.
We can disable Audible alarm in two ways -
1)By long pressing the Mute button
2)Go to menu under that select 'configure' press enter and select 'UPS' settings press enter and select 'Audible Alarm' where you can select 'Disable" or 'Enable' according to your need.
1)By long pressing the Mute button
2)Go to menu under that select 'configure' press enter and select 'UPS' settings press enter and select 'Audible Alarm' where you can select 'Disable" or 'Enable' according to your need.
The UPS will emit an audible alarm when the actual run time reaches the limit set by the end
user. The audible alarm will emit only when the UPS is working in battery mode. To set low
battery Alarm indication to follow below steps
1)Go to the Main menu select 'configuration' press enter.
2)Select 'Low battery state indication ' press enter.
3)Select option 2 min, 5 min,8 min, 11 min,14 min, 17 min,20 min, 23 min according to your requirement.
1)Go to the Main menu select 'configuration' press enter.
2)Select 'Low battery state indication ' press enter.
3)Select option 2 min, 5 min,8 min, 11 min,14 min, 17 min,20 min, 23 min according to your requirement.
We can disable Audible alarm in two ways
1) By long pressing the Mute button.
2) Go to menu under that select 'configure' press enter and select 'UPS' settings press enter and select 'Audible Alarm' where you can select 'Disable" or 'Enable' according to your need.
1) By long pressing the Mute button.
2) Go to menu under that select 'configure' press enter and select 'UPS' settings press enter and select 'Audible Alarm' where you can select 'Disable" or 'Enable' according to your need.
There are Three Nos of 12V 9AH SMF batteries inbuilt in this UPS.
UPS having 2 Yrs warranty including battery.
1.5 Mtrs.
