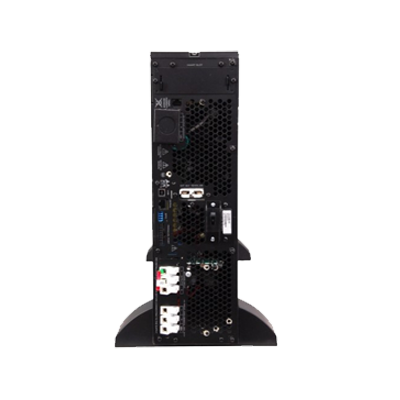

APC Smart-UPS RC 6000VA (SRCE6KUXI) with external battery
- High density, double-conversion on-line power protection with scalable runtime.
- 5.4kWatts / 6.0kVA.
- Warranty - 2 Yrs.
- applications -
- For Server
- Voice & Data
- Network
- Medical labs
- light industrial applications- Harsh environment
features
- Topology - Double conversion online.
- Cold-start capable .
- Generator compatibility.
- Front Panel - LED + LCD Display.
- Serial connectivity.
- Automatic internal bypass.
- Output Waveform Type - Pure sine wave.
- Rack/Tower convertible, 3U in Rack.
- Parallel Option avaliable.
frequently asked questions
Kindly follow the below steps configure amp-hour rating of the battery
through the SRCE6KUXI display.
1. Press enter key for the main menu.
2.Select battery option from the configuration menu.
3. Use the navigation key to select "Battery Amp-Hrs" option.
4. Press enter key the 'Battery Amp-Hrs" will start flashing.
5.As per the battery rating select desired "Amp-Hrs" using the navigation key.
6. Press enter key to confirm the change in setting.
1. Press enter key for the main menu.
2.Select battery option from the configuration menu.
3. Use the navigation key to select "Battery Amp-Hrs" option.
4. Press enter key the 'Battery Amp-Hrs" will start flashing.
5.As per the battery rating select desired "Amp-Hrs" using the navigation key.
6. Press enter key to confirm the change in setting.
Kindly follow below steps to view fault log of SRCE6KUXI through the display.
1. Press enter key for the main menu.
2. Use the navigation key to select log option from the main menu.
3. Select fault log option, scroll down to view all the fault log events.
1. Press enter key for the main menu.
2. Use the navigation key to select log option from the main menu.
3. Select fault log option, scroll down to view all the fault log events.
Kindly follow the below steps to set backlight intensity of SRCE6KUXI
through the display.
1. Press enter key for the main menu.
2.Select the user interface option from the configuration menu.
3. Use the navigation to select LCD backlight intensity.
4. Press enter key backlight intensity will start flashing.
5. Use the navigation key to select the desired backlight intensity level and press enter to apply the changes.
1. Press enter key for the main menu.
2.Select the user interface option from the configuration menu.
3. Use the navigation to select LCD backlight intensity.
4. Press enter key backlight intensity will start flashing.
5. Use the navigation key to select the desired backlight intensity level and press enter to apply the changes.
If the LCD User Interface in SRCE6KUXI model is hanged and not able to change any
setting or see any text, then wait untill the back-light of LCD goes off (Approximately 2 minutes).
Press any button after the back light goes off. Now see LCD, if the same problem persists kindly contact the customer care.
Note: During this period do not press any button.
Press any button after the back light goes off. Now see LCD, if the same problem persists kindly contact the customer care.
Note: During this period do not press any button.
Kindly follow the below instructions to set UPS output voltage to '220v/230v/240v' in
SRCE6KUXI models.
• Input supply should be on to the UPS.
• Turn on the UPS [display should be on].
• Click on 'Enter' button for Main Menu.
• Select the 'Configuration' option from Main Menu and enter on it.
• Inside the 'Configuration' option, select 'UPS settings' and click enter on it.
• Inside the 'UPS settings' select 'UPS output voltage' option.
• Press down 'arrow button' to select the desired output voltage and enter on it.
• Press Mute/Esc button twice to return to main screen.
• Recheck the output voltage from main screen it should be same as set voltage.
• Input supply should be on to the UPS.
• Turn on the UPS [display should be on].
• Click on 'Enter' button for Main Menu.
• Select the 'Configuration' option from Main Menu and enter on it.
• Inside the 'Configuration' option, select 'UPS settings' and click enter on it.
• Inside the 'UPS settings' select 'UPS output voltage' option.
• Press down 'arrow button' to select the desired output voltage and enter on it.
• Press Mute/Esc button twice to return to main screen.
• Recheck the output voltage from main screen it should be same as set voltage.
6 nos with stand and interlinks / AH depending upon the backup.
2 Years Repair or replace on site.
After confirm PO, we can deliver the UPS within 2-3 working days (But it's depend on stock
availability with APC ).
No. You have to purchase additional batteries. 6 Nos.
