APC Back-UPS 1000VA (BR1000G-IN)
- Battery Backup & Surge Protector for Electronics and Computers.
- 660 Watts / 1.1kVA.
- UPS Warranty 1 year including battery.
- Battery back-up 10 mins for 3PC And 30-40 mins for 1PC.
- Application - For 3 PC Desktop (PC 120 Watts appx.) & 1 Inkjet Printer.
Rs. 10,100/- including GST.
Note : prices are inclusive of GST. Transportation charges will be at actuals.
features
- Topology - Line interactive.

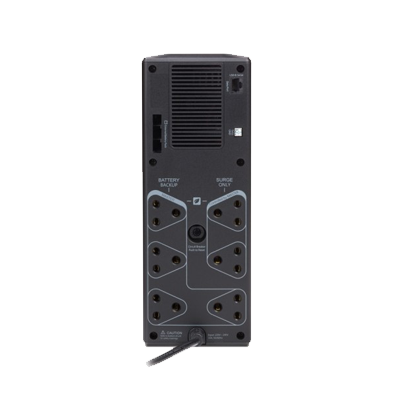

- Output Connection - (1) India 2/3-pin 6A (Surge Protection)(4) India 2/3-pin 6A (Battery Backup).
- Inbuilt AVR
- Boost and Trim Automatic Voltage Regulation (AVR).
- Battery and surge protected outlets.
- Cold-start capable.
- Generator compatibility.
- Front panel LED display.
frequently asked questions
Kindly follow the below procedure:
* Press and hold mute and display key simultaneously for two seconds.
* The UPS will beep to indicate that the feature is disabled.
* The leaf icon on the display will disappear.
* Power saving mode is now disabled.
* Press and hold mute and display key simultaneously for two seconds.
* The UPS will beep to indicate that the feature is disabled.
* The leaf icon on the display will disappear.
* Power saving mode is now disabled.
Kindly follow the below steps:
Press and hold mute key for few seconds.
If the line through the speaker icon
is not illuminated. Now the audible alarm has been turned on.
is not illuminated. Now the audible alarm has been turned on.
This is due to Display Power-Saving mode. To turn on the display , follow below steps.
Press and hold DISPLAY button for two seconds.
NOTE :While in Power-Saving Mode, the display will illuminate if a button is pressed, it then goes dark after 60 seconds of no activity.
NOTE :While in Power-Saving Mode, the display will illuminate if a button is pressed, it then goes dark after 60 seconds of no activity.
The Master Outlet threshold may be incorrectly set.
Solution : Adjust the threshold when the Master outlet signals the Controlled outlets to shut down. 1. Ensure a master device is connected to the Master outlet. Put that device into Sleep or Standby mode, or turn it OFF.
2. Press DISPLAY and MUTE simultaneously and hold for six seconds, until the leaf icon flashes three times and the Back-UPS beeps three times.
3. The Back-UPS will now recognize the threshold level of the Master device and save it as the new threshold setting.
Solution : Adjust the threshold when the Master outlet signals the Controlled outlets to shut down. 1. Ensure a master device is connected to the Master outlet. Put that device into Sleep or Standby mode, or turn it OFF.
2. Press DISPLAY and MUTE simultaneously and hold for six seconds, until the leaf icon flashes three times and the Back-UPS beeps three times.
3. The Back-UPS will now recognize the threshold level of the Master device and save it as the new threshold setting.
1. Ensure a master device is connected to the Master outlet. Put that device into Sleep or
Standby mode, or turn it OFF.
2. Press DISPLAY and MUTE simultaneously and hold for six seconds, until the leaf icon flashes three times and the Back-UPS beeps three times.
3. The Back-UPS will now recognize the threshold level of the Master device and save it as the new threshold setting.
Setting the threshold. The amount of power used by a device in Sleep or Standby mode varies between devices. It may be necessary to adjust the threshold at which the Master outlet signals the Controlled outlets to shutdown.
2. Press DISPLAY and MUTE simultaneously and hold for six seconds, until the leaf icon flashes three times and the Back-UPS beeps three times.
3. The Back-UPS will now recognize the threshold level of the Master device and save it as the new threshold setting.
Setting the threshold. The amount of power used by a device in Sleep or Standby mode varies between devices. It may be necessary to adjust the threshold at which the Master outlet signals the Controlled outlets to shutdown.
Appx. 20-30 mins.
It is advance feature of APC (BR1000G-IN) UPS to safe shutdown software with power and energy
management features for computers and battery back-up.
It usually depends upon the PC configuration. Max. 3 to 4 PC can Connect.
UPS having 2 Yrs warranty including battery.
APC 1KVA (BR1000G-IN) UPS is with LCD Display, communication port and having auto shutdown
features, where as 1.1 KVA having LED Display, no communication port and not having auto
shutdown features.
